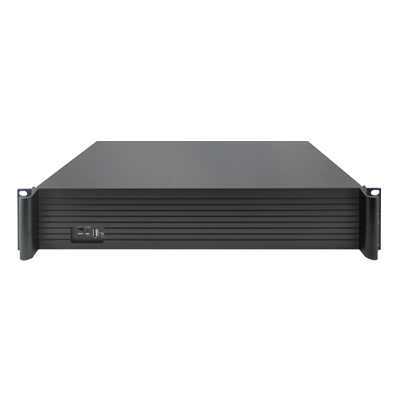

- Smart NVR 36/64CH GSA-36NVR-M2/GSA-64NVR-M
| Features |
| •Support 36/64ch full 4k video real-time access, 2U NVR, 9 SATA ports. |
| •Support H.265/H.264 stream, embedded Linux operating system. |

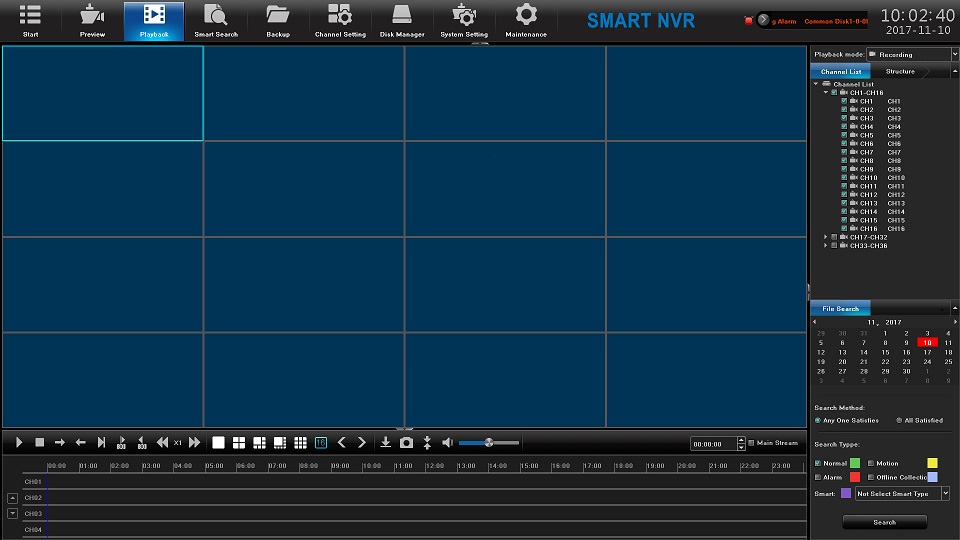

| •Support video playback, remote monitoring and backup. |
| •Support preview and playback with 12 times electronic amplification. |
| •Standard ONVIF, RTSP, GB28181 protocol. |
| •Support DDNS, EMAIL, UPNP, NTP, etc. |
| •Support Web, mobile monitoring, PC client,CMS software. |
| •Support P2P. |
| •Double 100/1000M ethernet ports, double IP range. |
| •Support RAID0, RAID1, RAID5, RAID6 and RAID10. |
| •Support channel grouping, preview cycle. |

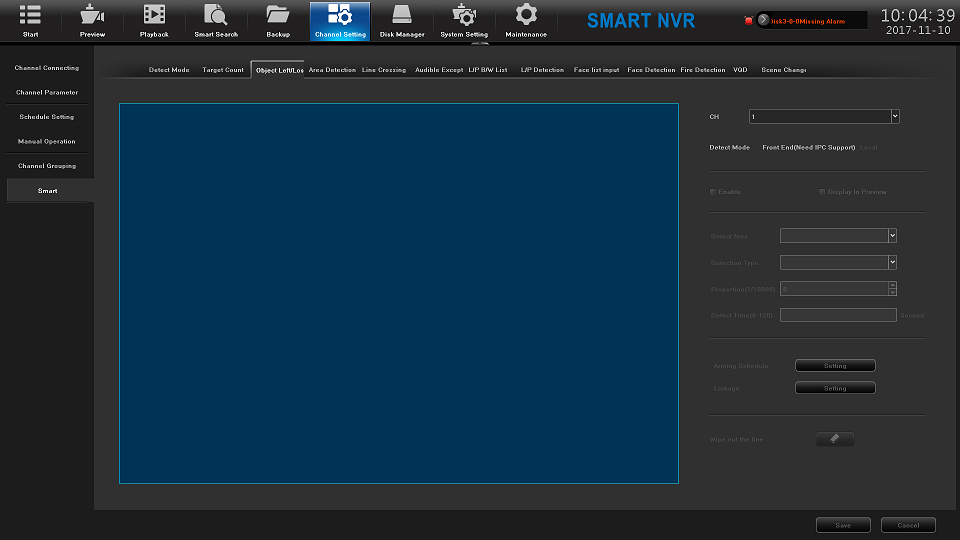

| •Support NVRsmart analysis (Target count, Item detection, Area detection, Virtual cordon-, Scene transformation). |
| •Support 16ch 1080P video synchronous playback and multi channel synchronous playback. |
•Support dual password authentication . |
| Technical specification | ||
| Model | GSA-36NVR-M2 | GSA-64NVR-M |
| Operating | Embedded Linux operating system | |
| Video | ||
| Network video | 36ch 4K/5MP/3MP/1080p/960p/720p input | 64ch 4K/5MP/3MP/1080p/960p/720p input |
| Network video | VGA/HDMI， 3840×2160@30HZ,1920×1080@60HZ,1280×1024@60HZ | |
| Video bit rate | 16-8000Kbps | |
| Image preview | 1/4/6/8/9/16/25/36 channel | 1/4/6/8/9/16/25/36/64 channel |
| Video | H.265/H.264/MJPEG | |
| Capture mode | Schedule/Manual, JPEG format | |
| Audio | ||
| Audio | 1ch audio input and 1ch output | |
| Audio | G.711A | |
| Storage | ||
| HDD port | 9 SATA ports, 1 E-SATA | |
| Raid mode | Raid0, Raid1, Raid5, Raid6, Raid10 | |
| Capacity | Support 8TB HDD | |
| Alarm | ||
| Motion detection | Support image set to 396 (22*18) detection areas, multistage sensitivity | |
| Smart detection | Motion detection, video miss, video occlusion, occlusion alarm | |
| Alarm | 4ch input，4ch output | |
| Network management | ||
| Network | TCP/IP,HTTP,DDNS,SMTP(SSL),DHCP,PPPOE,UPNP,NTP | |
| Compliance | ONVIF, RTSP, GB28181，Slink | |
| Remote | WEB(IE, Chrome, Firefox, Safiri), IOS, Android Mobile monitor | |
| Smart analysis | Target count, Item detection, Area detection, Virtual cordon, Scene | |
| transformation | ||
| Others | Dual password authentication | |
| Video management | ||
| Record mode | Manual/Schedule record, Motion alarm record, Motion alarm Snap, link down record | |
| Resolution | 36ch 4K/5MP/3MP/1080p/960p/720p | 64ch 4K/5MP/3MP/1080p/960p/720p |
| Broadband | 216Mbps | |
| Record frame | 1-30fps | |
| Video query | Time, Date, Event, Channel, Exact Search (accurate to second） | |
| Record storage | Local, Network, NAS, IPSAN | |
| Playback&Backup | ||
| Playback mode | Regular playback, instant replay, event playback, external file playback | |
| Playback | 4ch 4K/5MP | |
| capability | 9ch 3MP | |
| 16ch 1080p/960p/720p | 36ch 1080p/960p/720p | |
| Playback | Play, Stop, Rewind, Next File, Previous File, Next Camera, Previous Camera, | |
| operations | Fast play, Slow play, Single frame, Backup, Screenshot, Full screen selection | |
| Backup mode | Removable HDD, USB flash disk, Network backup | |

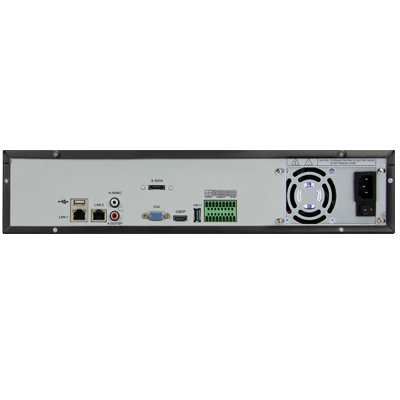

| External ports | ||
| Network port | 2 RJ45 Ports (100M/1000M Ethernet port ) | |
| USB port | 2PCS 2.0 USB port, 1PCS 3.0 USB port | |
| RS485 port | Support | |
| General | ||
| Power supply | AC100～240V，47Hz～63Hz | |
| Power | 35W (Without HDD) | |
| Storage | -10°C ~ 55°C / 10﹪-90﹪RH | |
| Dimensions | W412mm×D430mm×H87mm | |
| 7KG | ||
