- Smart NVR128ch GSA-128NVR-P2
FEATURES
•Support 128ch full 4k video real-time access, 4U NVR, 24SATA ports.
•Support H.265/H.264 stream, embedded Linux operating system.

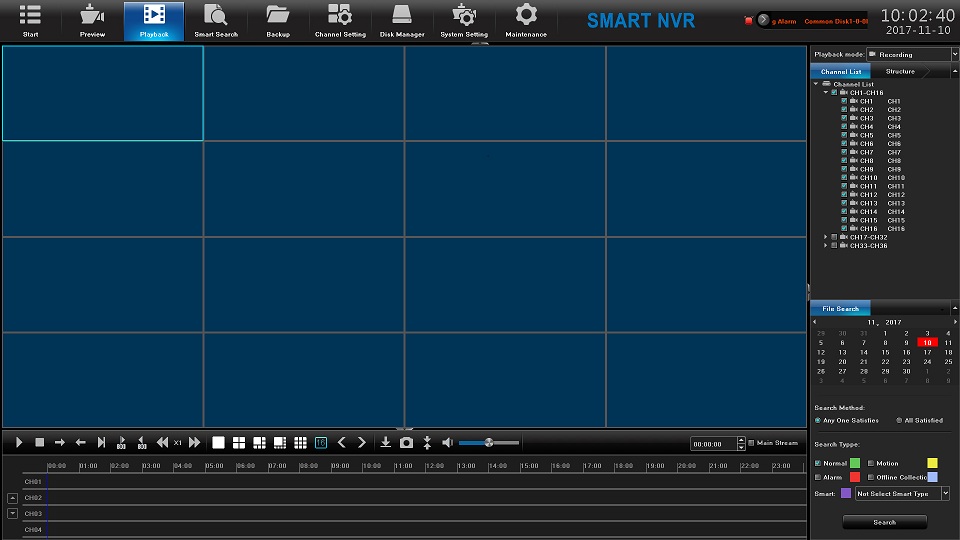

•Support video playback, remote monitoring and backup.
•Support preview and playback with 12 times electronic amplification.
•Standard ONVIF, RTSP, GB28181 protocol.
•Support DDNS, EMAIL, UPNP, NTP, etc.
•Support Web, mobile monitoring, PC client,CMS software.
•Support UMeye P2P.
•Double 100/1000M ethernet ports, double IP range.
•Support RAID0, RAID1, RAID5, RAID6 and RAID10.
•Support channel grouping, preview cycle.

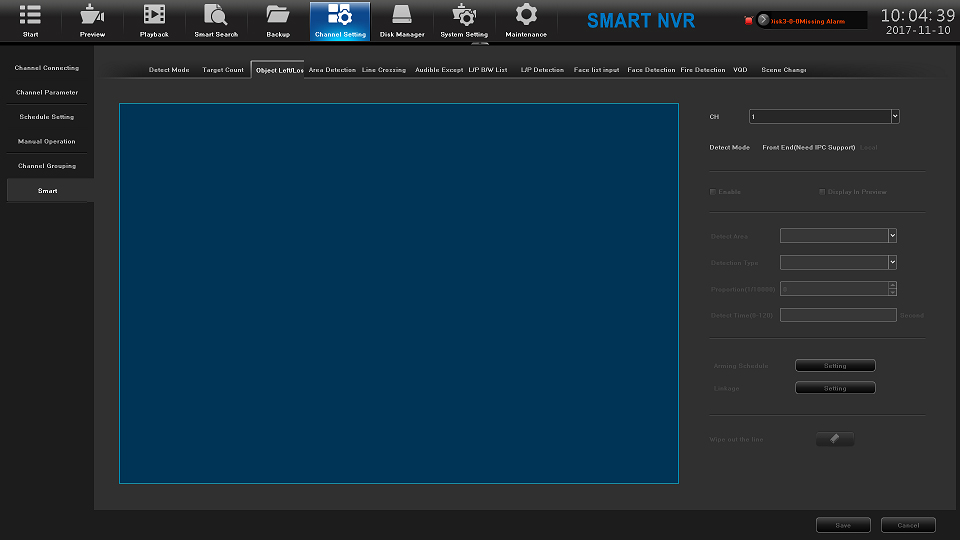

•Support NVRsmart analysis (Target count, Item detection, Area detection,
Virtual cordon, Scene transformation).
• Support 16ch 1080P video synchronous playback and multi channel synchronous playback.
SPECIFICATIONS
Operating System | Embedded Linux operating system |
Video | |
Network video input | 128ch 4K/5MP/3MP/1080p/960p/720p input |
Network video output | 2*VGA/2* HDMI, |
3840×2160@30HZ,1920×1080@60HZ,1280×1024@60HZ | |
Video bit rate | 16-8000Kbps |
Image preview | 1/4/6/8/9/16/25/36/64 channel |
Video compression | H.265/H.264/MJPEG |
Capture mode | Schedule/Manual, JPEG format |
Audio | |
1ch audio input and 1ch output | |
Audio compression | G.711A |
Storage | |
HDD port | 24 SATA ports, 1 E-SATA |
Raid mode | Raid0, Raid1, Raid5, Raid6, Raid10 |
Capacity | Support 6TB HDD |
Alarm | |
Motion detection | Support image set to 396 (22*18) detection areas, multistage sensitivity |
Smart detection | Motion detection, video miss, video occlusion, occlusion alarm |
Alarm | 16ch input，8ch output |
Network management | |
Network protocol | TCP/IP,HTTP,DDNS,SMTP(SSL),DHCP,PPPOE,UPNP,NTP |
Compliance protocol | ONVIF, RTSP, GB28181 |
Remote application | WEB(IE, Chrome, Firefox, Safiri), IOS, Android Mobile monitor |
Smart analysis | Target count, Item detection, Area detection, Virtual cordon, Scene |
transformation | |
Others | Dual password authentication |
Video management | |
Record mode | Manual/Schedule record, Motion alarm record, Motion alarm Snap, link |
down record | |
Resolution | 128ch 4K/5MP/3MP/1080p/960p/720p |
Broadband access | 640Mbps |
Record frame rate | 1-30fps |
Video query | Time, Date, Event, Channel, Exact Search (accurate to second） |
Record storage path | Local, Network, NAS, IPSAN |
Playback&Backup | |
4ch 4K/5MP | |
Playback capability | 9ch 3MP |
16ch 1080p/960p/720p | |
Playback operations | Play, Stop, Rewind, Next File, Previous File, Next Camera, Previous Camera, |
Fast play, Slow play, Single frame, Backup, Screenshot, Full screen selection | |
Backup mode | Removable HDD, USB flash disk, Network backup |
External ports | |
Network port | 2 RJ45 Ports (100M/1000M Ethernet port ) |
USB port | 2pcs 2.0 USB port, 1pcs 3.0 USB port |
RS485 port | Support |
Audio port | 1pcs input, 2pcs output |
General | |
Power supply | AC100～240V，47Hz～63Hz |
Power consumption | ≤ 50W (Without HDD) |
Storage condition | -10°C ~ 55°C / 10﹪-90﹪RH |
Dimensions | W431.5mm×D600mm×H177.5mm |
23KG |
